AHUs & TERMINAL UNITS – DAIRA KTH
dairaKTH | KTVAir handling units
16-98 kW22-118 kW
3000 m³/h – 17000m³/h
Documentation
Specifications table
Views & Dimensions
Documentation
Commercial documentation
Available languages:
|
|
|
|
|
Specifications table
Views & Dimensions

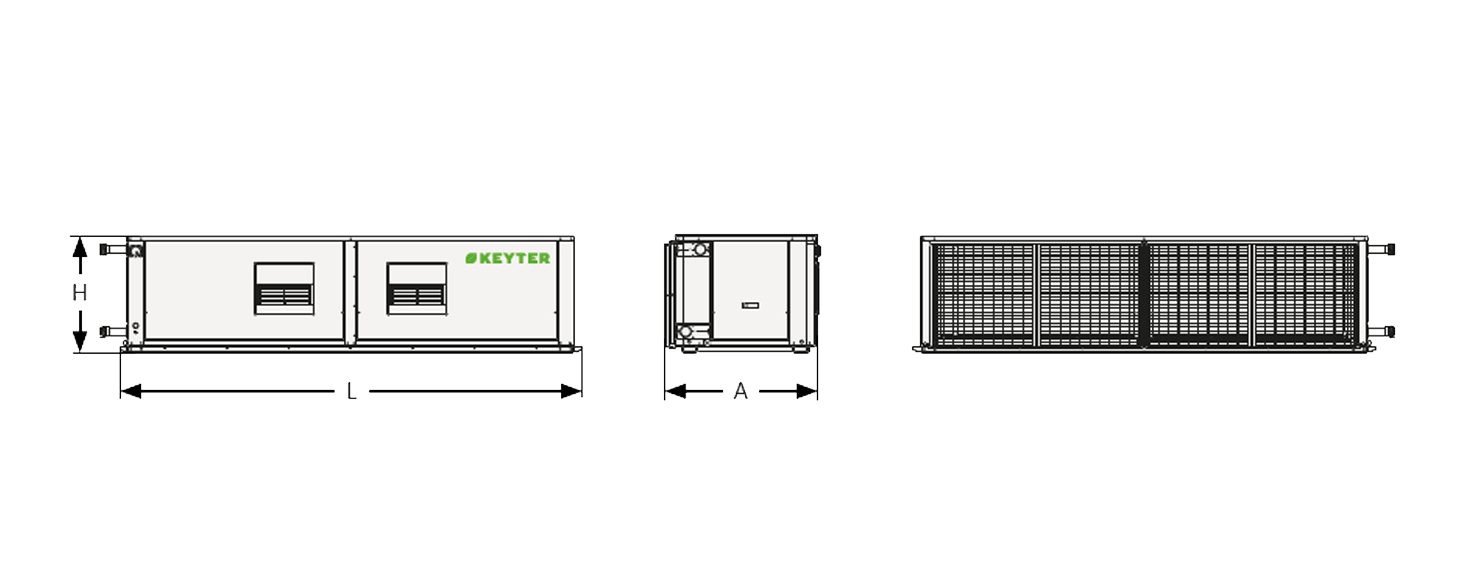

| Dimensions horizontal unit (KTH) (mm) | |||||||
|---|---|---|---|---|---|---|---|
| Series 0 | Series 1 | Series 2 | Series 3 | Series 4 | Series 5 | Series 6 | |
| L | 906 | 1136 | 1339 | 2106 | 2556 | 2556 | 2556 |
| A | 806 | 806 | 806 | 806 | 806 | 856 | 856 |
| H | 660 | 660 | 660 | 660 | 660 | 660 | 960 |

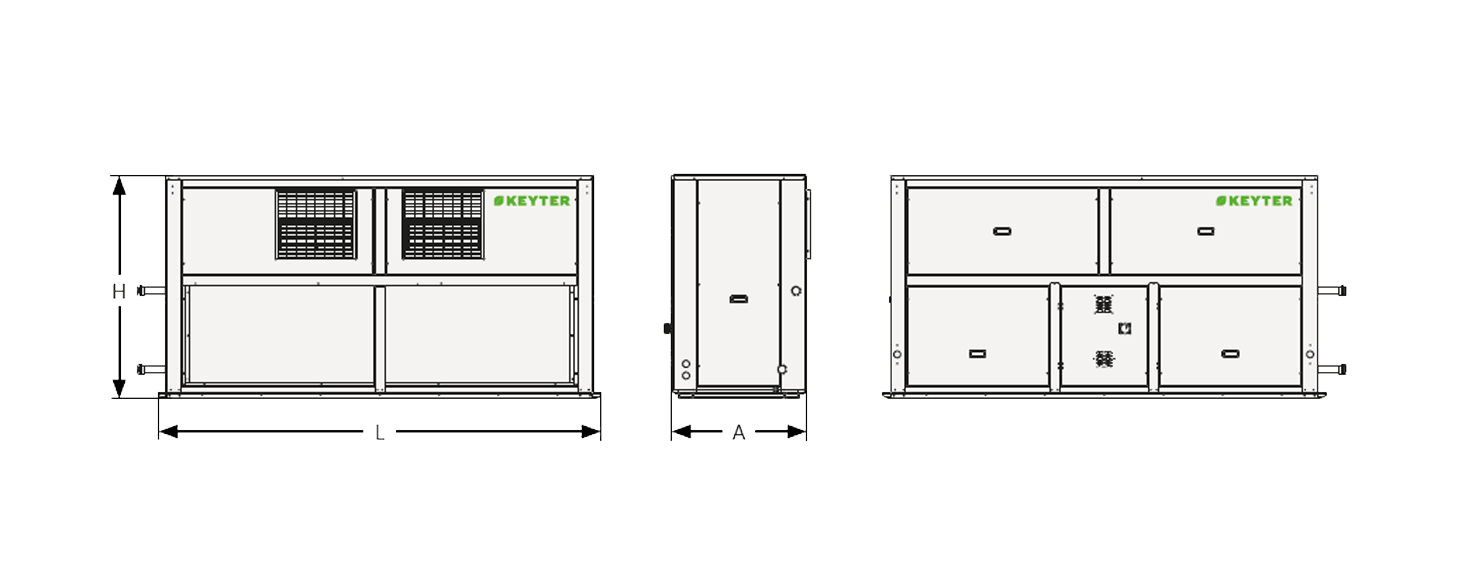

| Dimensions vertical unit (KTV) (mm) | |||||||
|---|---|---|---|---|---|---|---|
| Series 0 | Series 1 | Series 2 | Series 3 | Series 4 | Series 5 | Series 6 | |
| L | 906 | 1136 | 1339 | 2106 | 2556 | 2556 | 2556 |
| A | 806 | 806 | 806 | 806 | 806 | 856 | 856 |
| H | 1100 | 1331 | 1331 | 1334 | 1334 | 1629 | 1629 |
